Star Triple Speed Side Milling Rotary Tool Holder

  • Product Specification



    Model 7D2-31
    STAR Number -
    Ratio 1/ 3
    Maximum rpm 18000rpm
    Max collet diameter AR11-M, ER11-M
    Applicable models SR2OR, SR-20RII, SR-2ORIII, SR-20J/ JN, SR32J/ JN, SW20

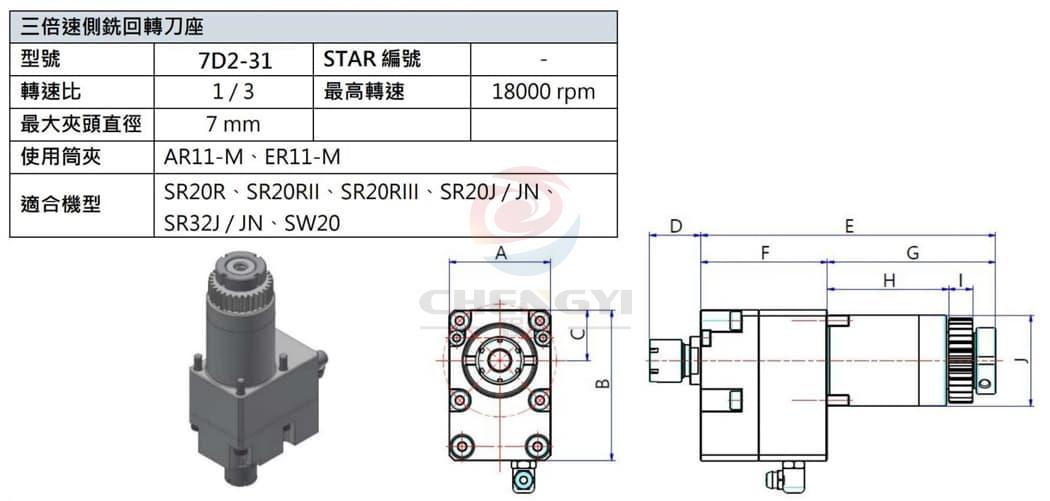

    Model A B C D E F G H I J
    7D2-31 37.6 56 18.8 19.2 109.5 47 62.5 45 9 Ø34

    unit: mm
