• Product Specification



    Model 9D2-101
    STAR Number -
    Max collet diameter 7mm
    Using a Collet AR11-M, ER11-M
    Applicable models RNB16

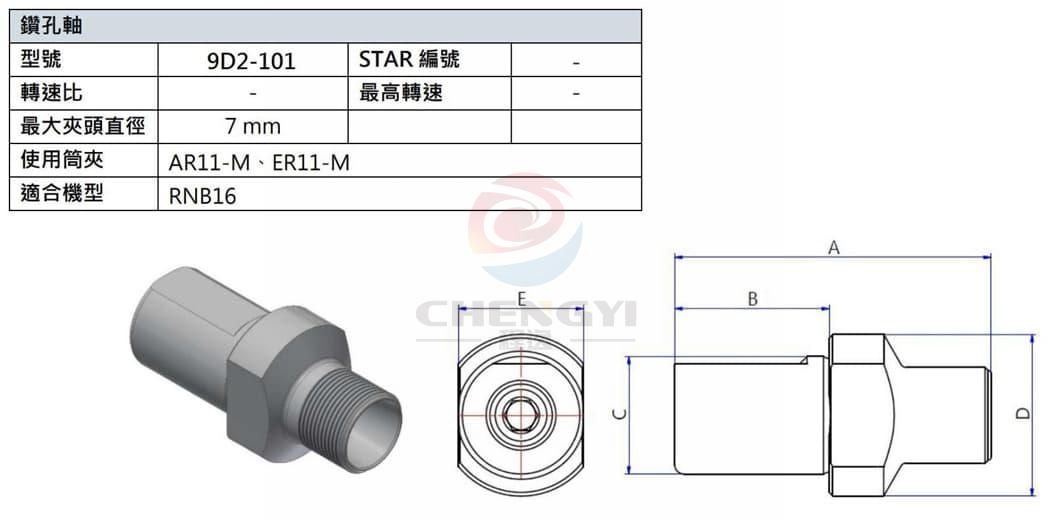

    Model A B C D E
    9D2-101 43 21 Ø16 Ø22 17

    unit: mm
