Japan Rotary & Static Tool Holder STAR

Star Back Processing Side Fixation Knife Holder

  • Product Specification



    Model 671-75
    STAR Number 671-75
    Max tool shank diameter Ø16
    Shank diameter Ø16, Ø12.7, Ø12, Ø10, Ø9.525, Ø8, Ø7.938
    Applicable models SR32J, SR32JN

    Handle Diameter (Ød) Bushing Cylinder Head Screw
    Ø16 \ M6x8
    Ø12.7 BS127160305 M6x8
    Ø12 BS120160305 M6x8
    Ø10 BS100160305 M6x10
    Ø9.525 BS095160305 M6x10
    Ø8 BS080160305 M6x10
    Ø7.938 BS079160305 M6x10

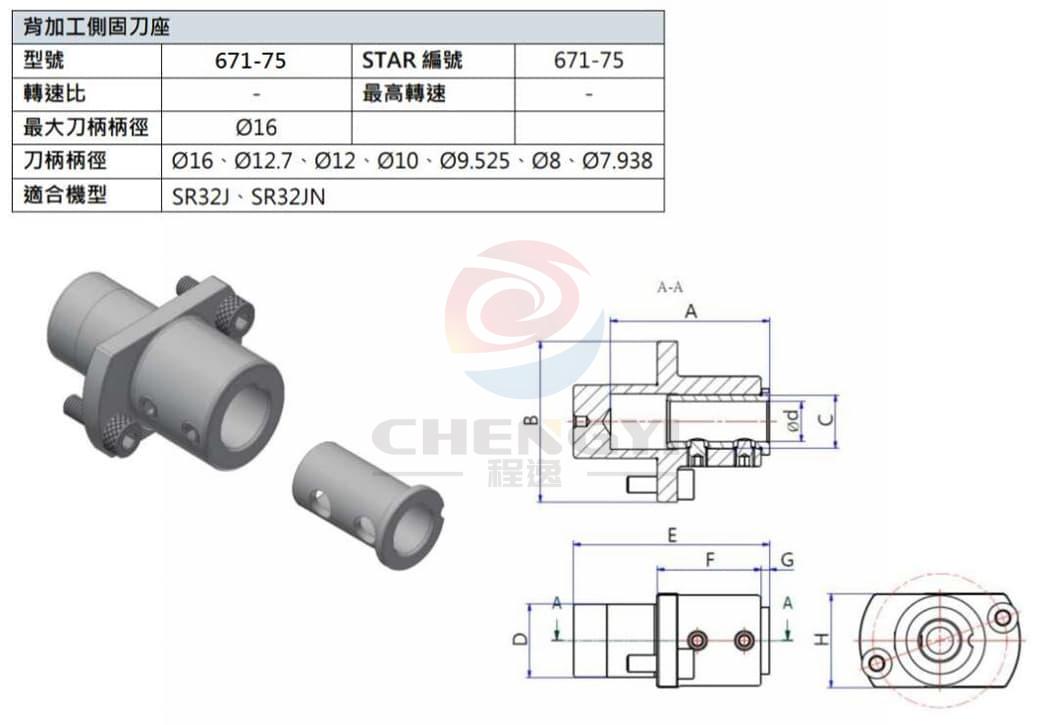

    Model A B C D E F G H
    671-75 47.5 48 Ø18 Ø22 58.5 31 2.5 28

    unit: mm
