Japan Rotary & Static Tool Holder STAR

Star Back Processing Saw Blade Holder

  • Product Specification



    Model 691-65
    STAR Number 691-65/ 691-66
    Ratio 1/ 0.55
    Maximum rpm 4000rpm
    Spindle fine-tuning distance ±1mm
    Shank diameter Ø5, Ø6, Ø8, Ø10, Ø12, Ø12.7, Ø13
    Applicable models ECAS12/ 20, SR20RII, SR20RIII, SR20J/ JN, SR32J/ JN, SR10J, SB12R/ 20R TYPE E/ N, SW12RII, SV20R

    Shank Diameter Spacer Lock Nut Body Number
    Ø5 GK050110250 / GK050110700 CNM05080080 69166-5
    Ø6 GK060120250 / GK060120700 CNM06100080 69166-6
    Ø8 GK080140250 / GK080140700 CNM08100080 69166-8
    Ø10 GK100170250 / GK100170700 CNM10100080 69166-10
    Ø12 GK120190250 / GK120190700 CNM12125080 69166-12
    Ø12.7 GK127190250 / GK127190700 CNM12125080 69165-12.7
    Ø13 GK130190250 / GK130190700 CNM12125080 69165-13

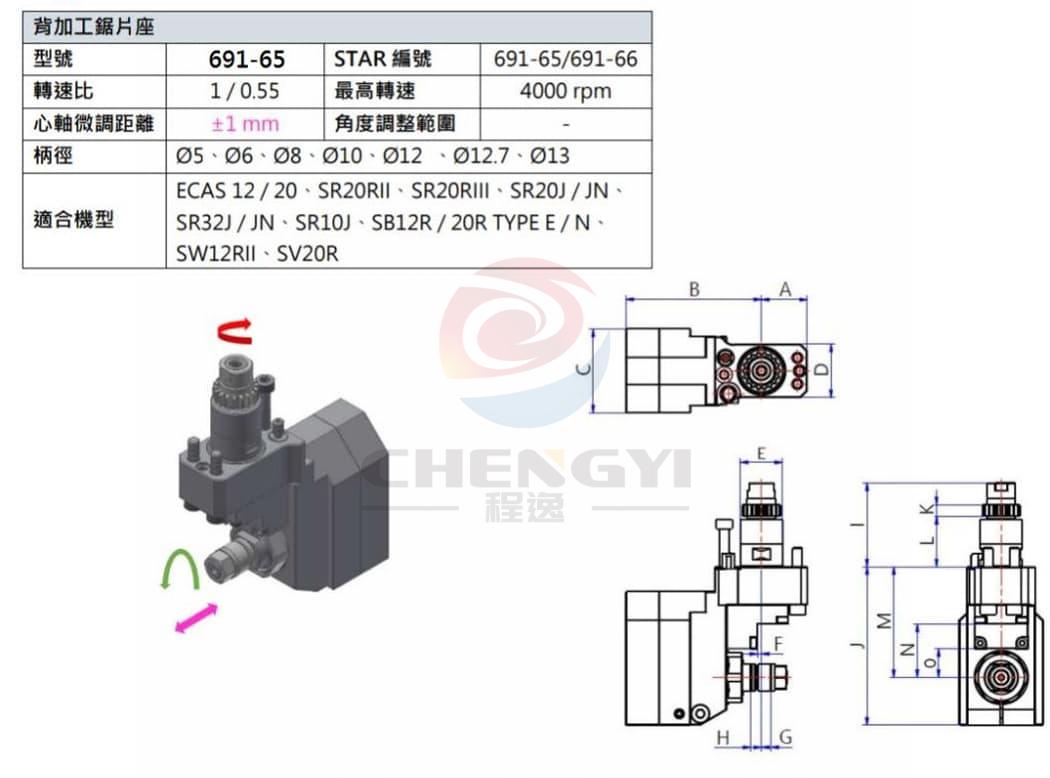

    Model A B C D E F G H I J K L M N O
    691-65 24 71 44 28 Ø22 2 5 6 (MAX) 44 83 6 26.5 58 28 15

    unit: mm
