Japan Rotary & Static Tool Holder STAR

Star Angle Adjustment Positive Power Holder

  • Product Specification



    Model 7D2-63
    STAR Number -
    Ratio 1/ 1
    Maximum rpm 6000rpm
    Max collet diameter 10mm/ 7mm
    Angle adjustment range 0~90°
    Using a Collet Spindle: AR16-M, ER16-M
    Sub-spindle: AR11-M, ER11-M
    Applicable models SR-20RII, SR-20RIII, SR-20J/ JN, SR-20RIV, SB12II/ SB16II/ SB20 TYPE E

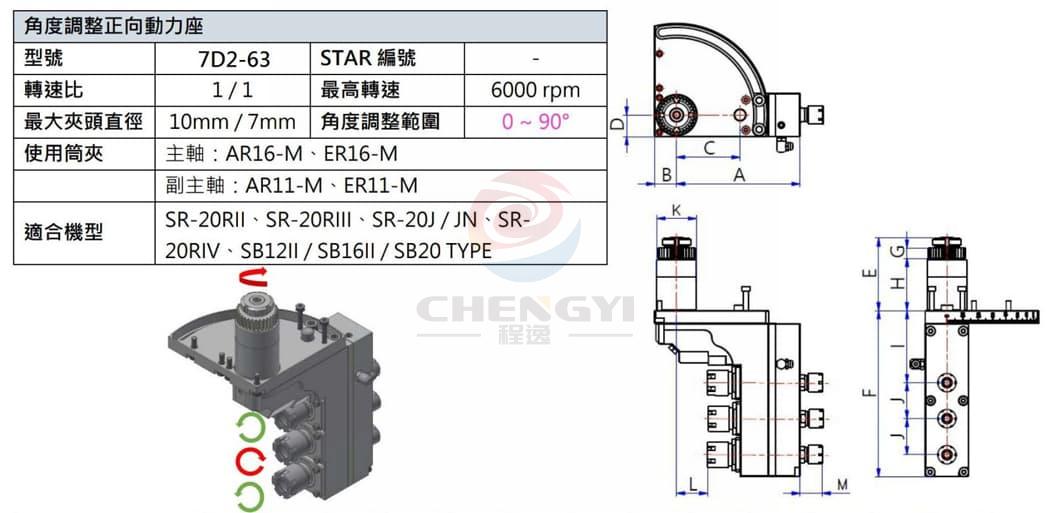

    Model A B C D E F G H I J K L M
    7D2-63 106 19 54.5 18.75 62.5 143 9 45 62 31 Ø34 26.5 19.2

    unit: mm
