Japan Rotary & Static Tool Holder CITIZEN

Citzen Back Machining Milling Holder

  • Product Specification



    Model GSS1330
    CITIZEN Number GSS1330
    Ratio 1/ 0.9
    Maximum rpm 5000rpm
    Scale adjustment 0.02mm
    Spindle fine-tuning distance 0~3mm
    Using a Collet AR11-A, ER11-A
    Applicable models L20E-VIII, L20-IX, L20X, L20XII, L20E-2M8

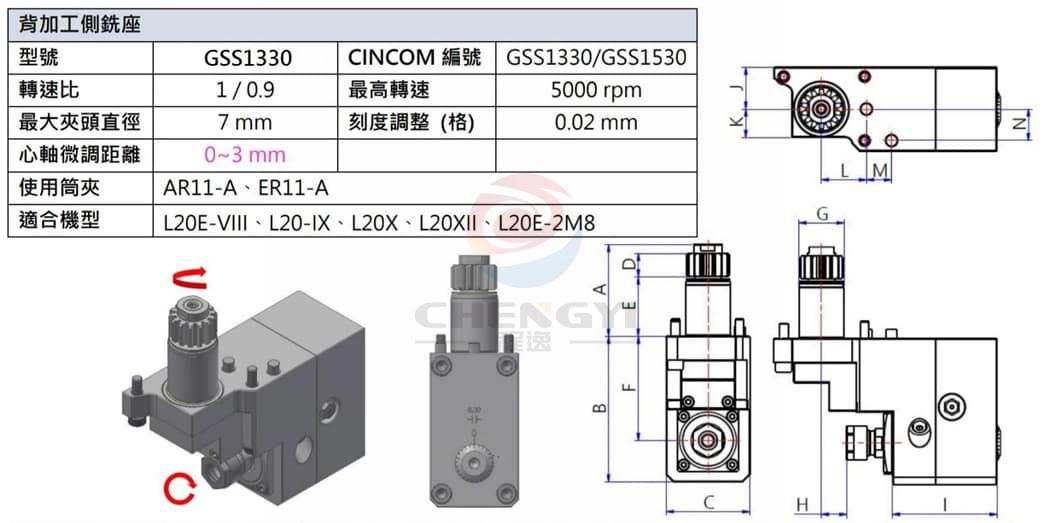

    Model A B C D E F G H I J K L M N
    GSS1330 51 81 46.5 13 33 58 Ø25 11-14 58 23.25 15.75 25 14 17.5

    unit: mm
